Description:

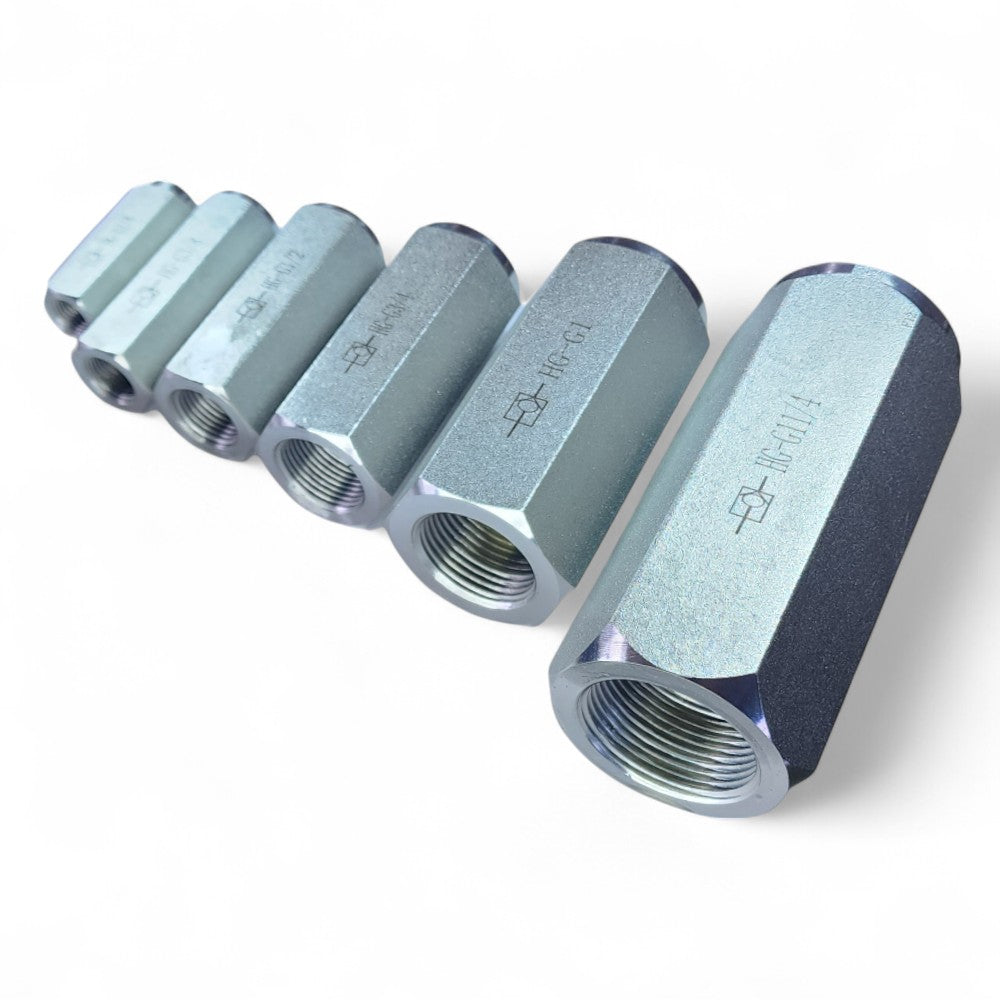

Hydraulic Inline Check Valve
Lets oil flow only in one direction
Specifications:
Valve & valve body material: Steel
Valve external coating: Trivalent chromium
Thread A: NPT (Pipe Thread Female)
Thread B: NPT (Pipe Thread Female)
Optimal oil operating temperature range: 40°C to 70°C
Max operating temperature: 90°C
Min/Max ambient temperature: -25°C to +60°C
Check valve minimum operating pressure: 7 PSI (0.5 Bar)
| Model | Max Flow Rate | Max Operating Pressure | Port Size |
|---|---|---|---|
| HG-G 1/4" | 8 GPM (30 LPM) | 7250 PSI (500 BAR) | 1/4" NPT |
| HG-G 3/8" | 12 GPM (30 LPM) | 7250 PSI (500 BAR) | 3/8" NPT |
| HG-G 1/2" | 18.5 GPM (70 LPM) | 7250 PSI (500 BAR) | 1/2" NPT |
| HG-G 3/4" | 29 GPM (110 LPM) | 5800 PSI (400 BAR) | 3/4" NPT |
| HG-G 1" | 42 GPM (160 LPM) | 5000 PSI (350 BAR) | 1" NPT |
| HG-G 1 1/4" | 55.5 GPM (210 LPM) | 5000 PSI (350 BAR) | 1 1/4" NPT |
