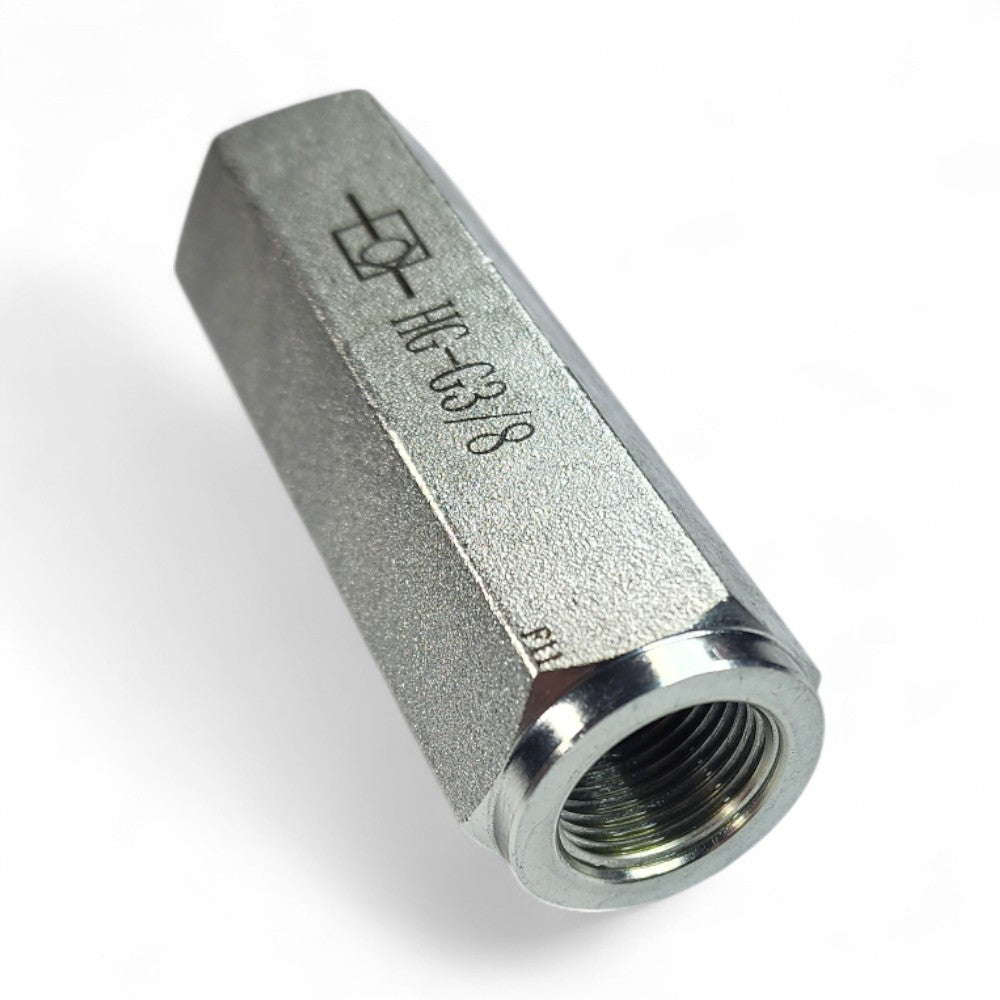

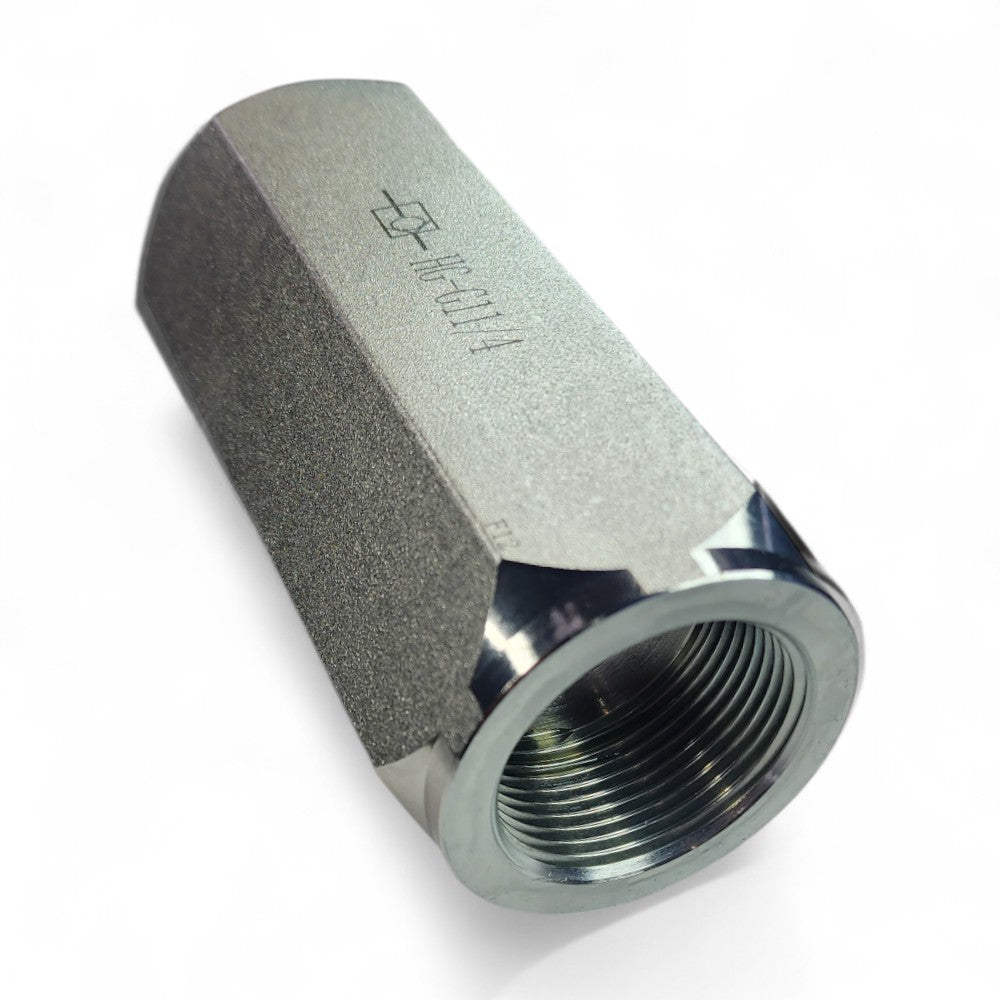

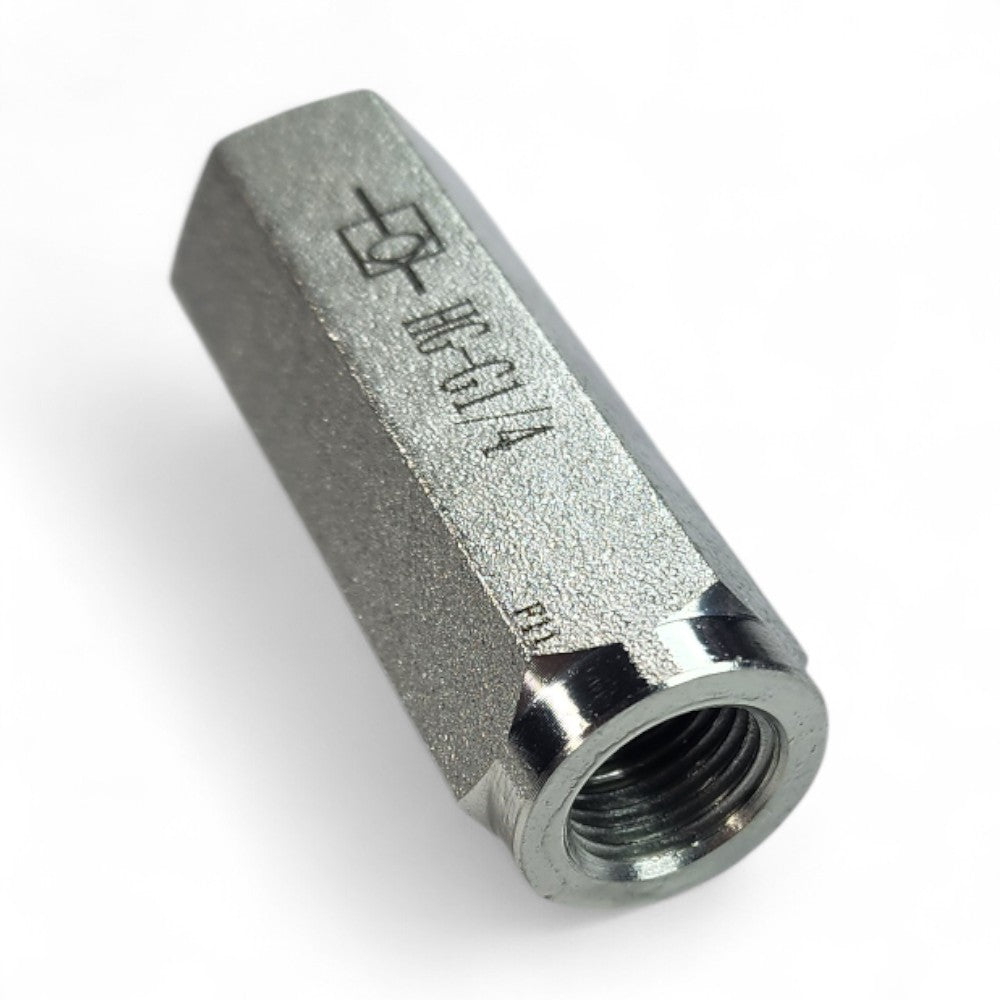

• Inline Check Valve with 1/4" NPT Ports

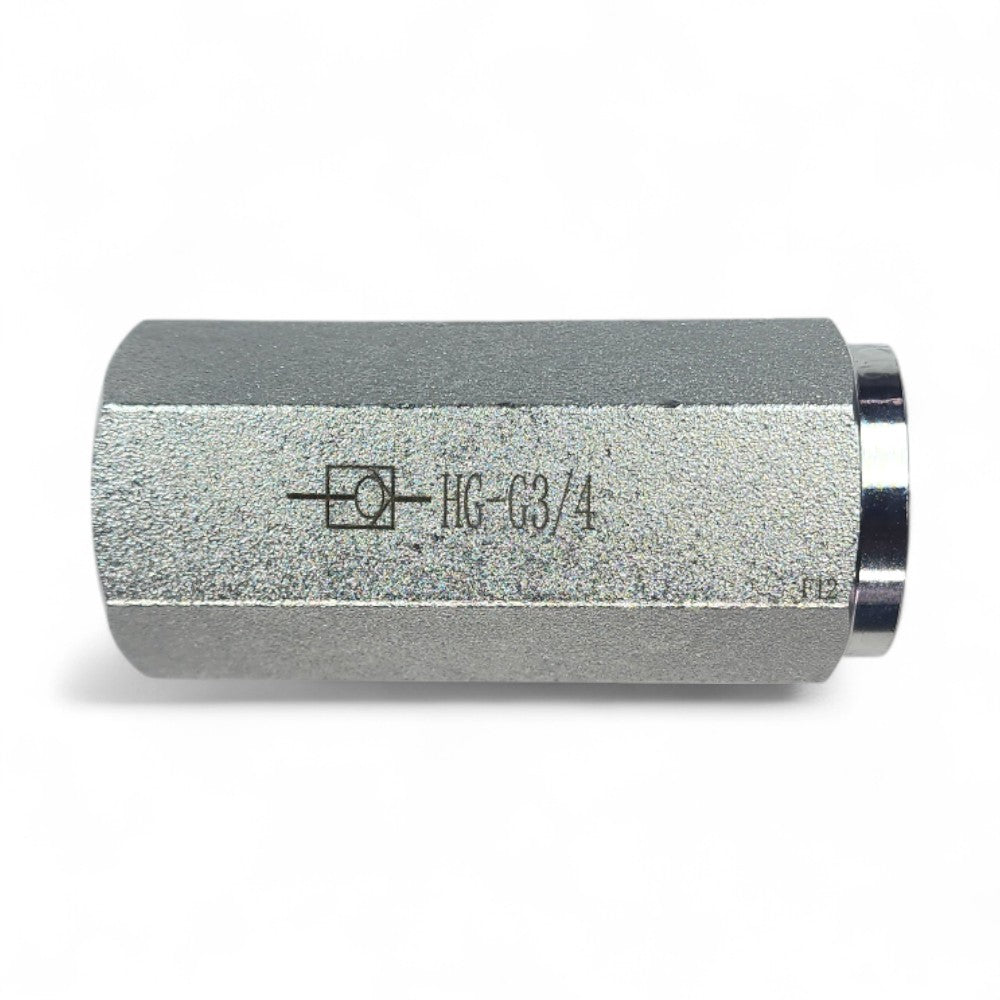

  • Check Valves Product picture

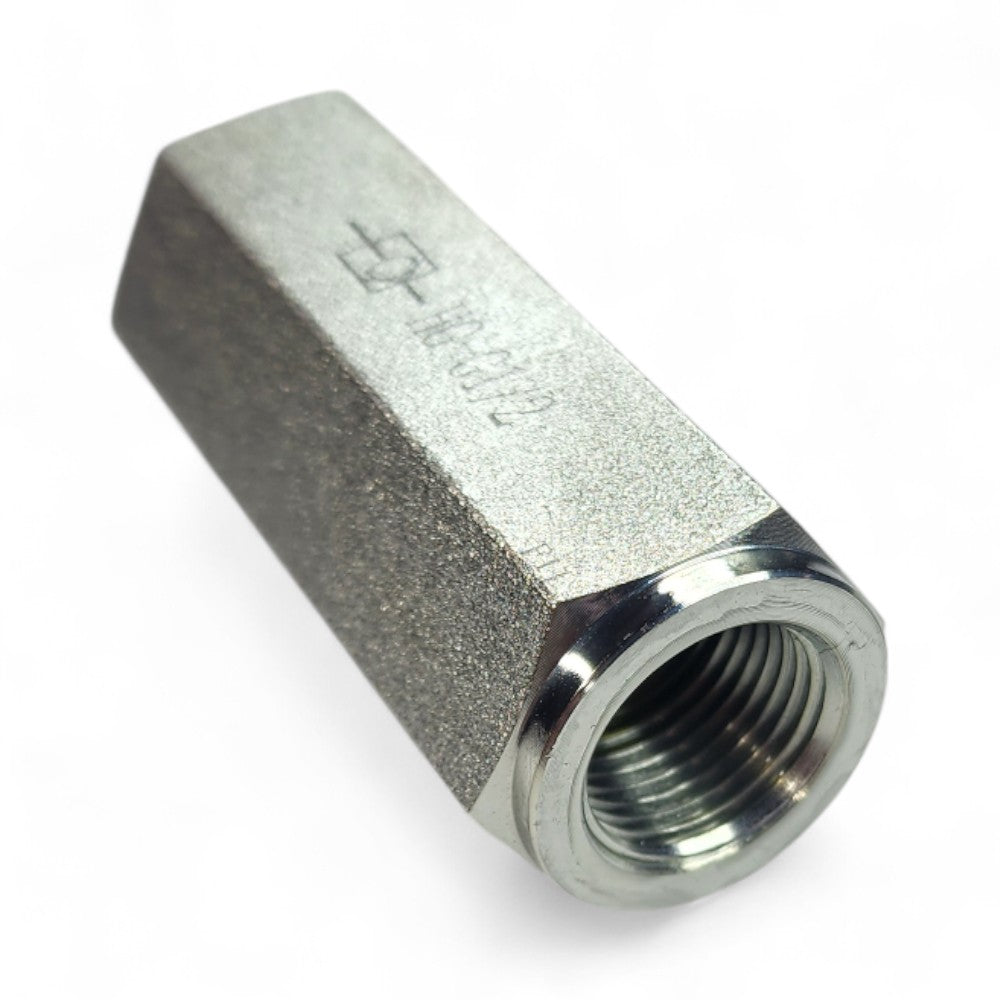

  • Check Valves Product picture View B

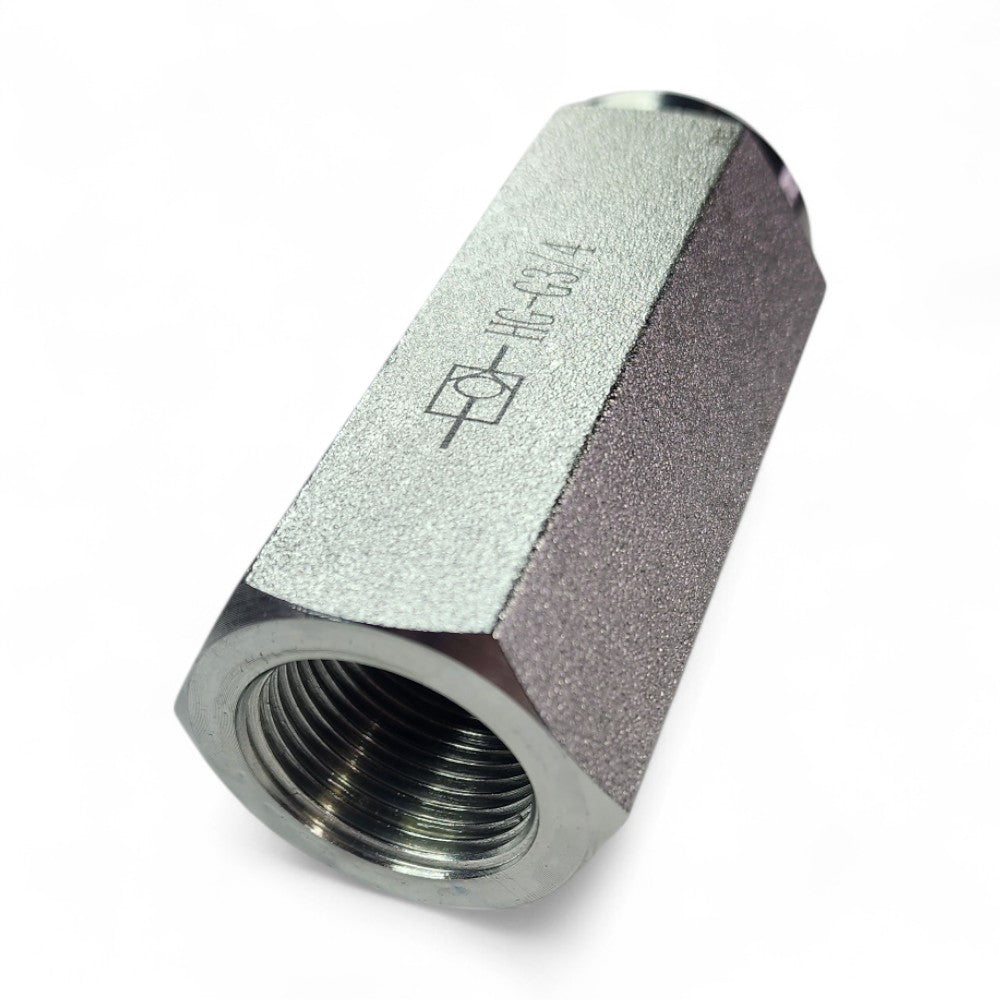

  • Check Valves Product picture View C

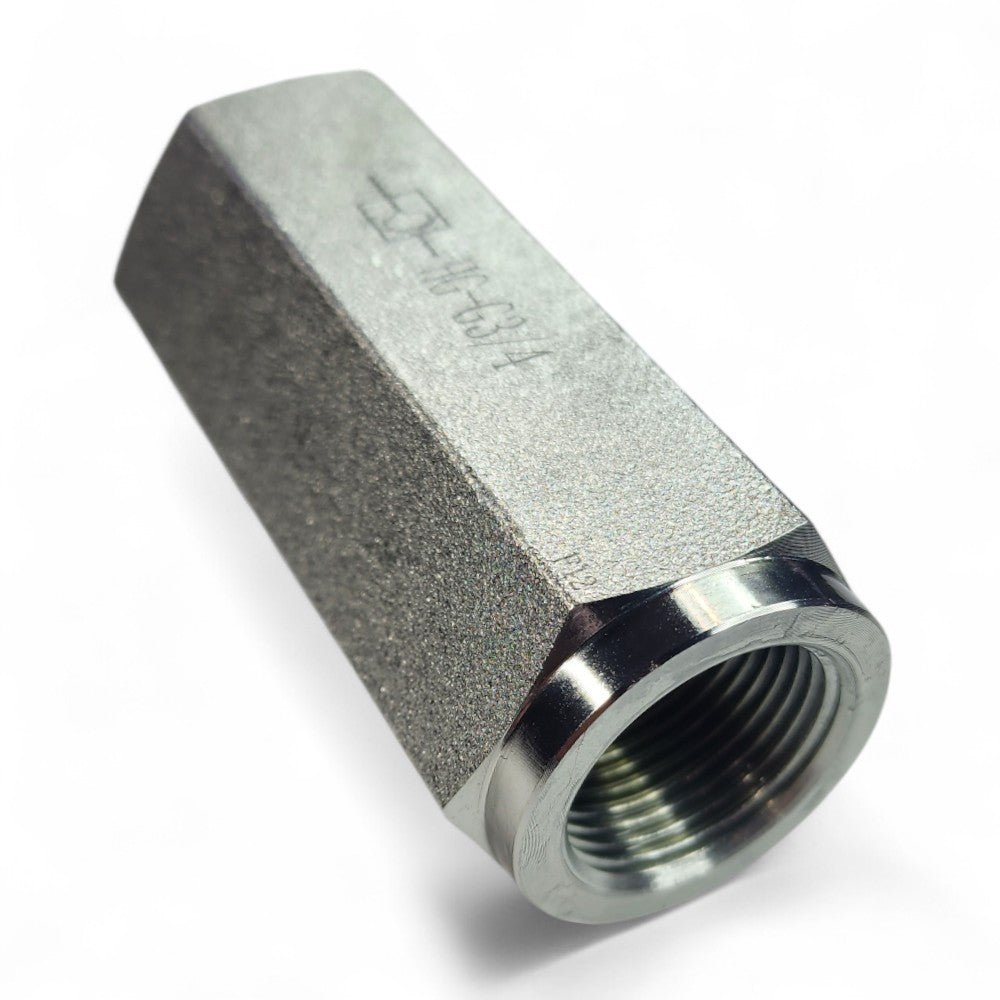

  • Check Valves Product picture View D

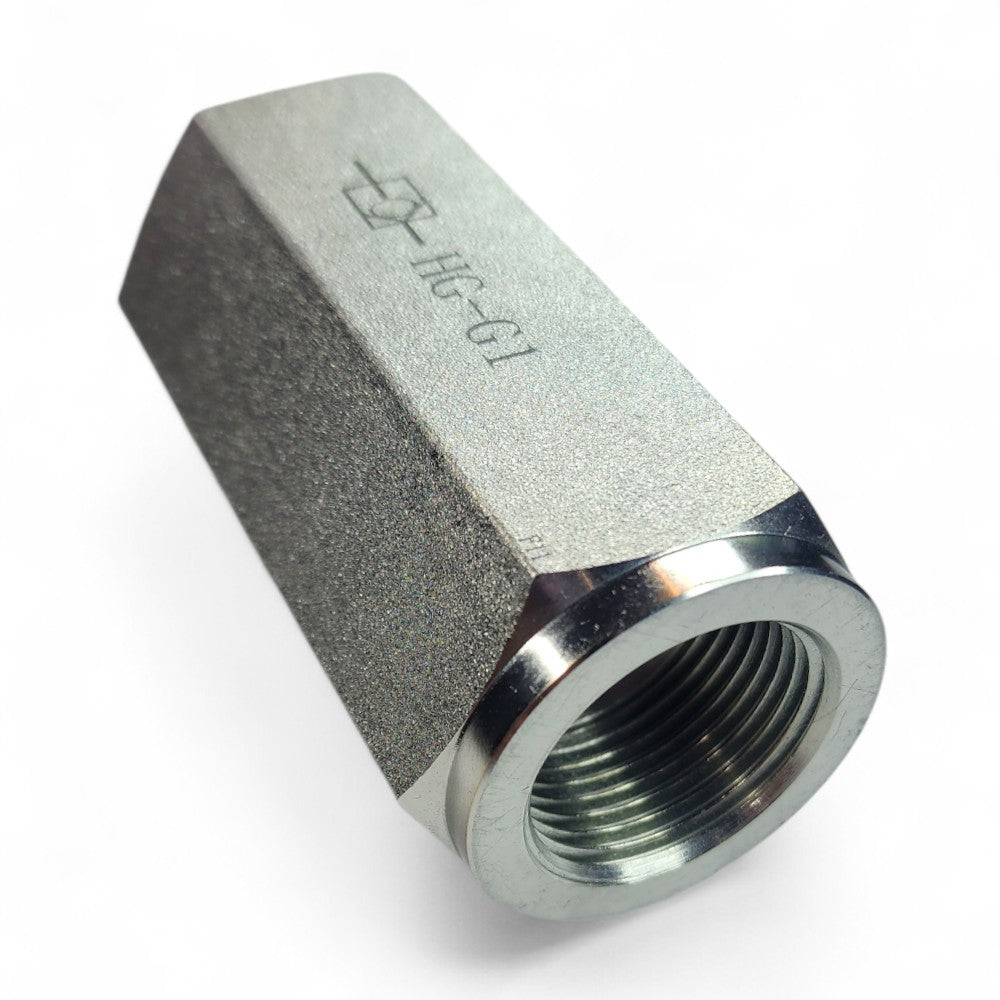

  • Check Valves Product picture View E
1 6

TR Hydraulics

Check Valves - Inline

Check Valves - Inline

Size
$9.27 CAD
$9.27 CAD
Sale Sold out
Shipping calculated at checkout.

Description:

Hydraulic Inline Check Valve

Lets oil flow only in one direction

Specifications:

Valve & valve body material: Steel

Valve external coating: Trivalent chromium

Thread A: NPT (Pipe Thread Female)

Thread B: NPT (Pipe Thread Female)

Optimal oil operating temperature range: 40°C to 70°C

Max operating temperature: 90°C

Min/Max ambient temperature: -25°C to +60°C

Check valve minimum operating pressure: 7 PSI (0.5 Bar)

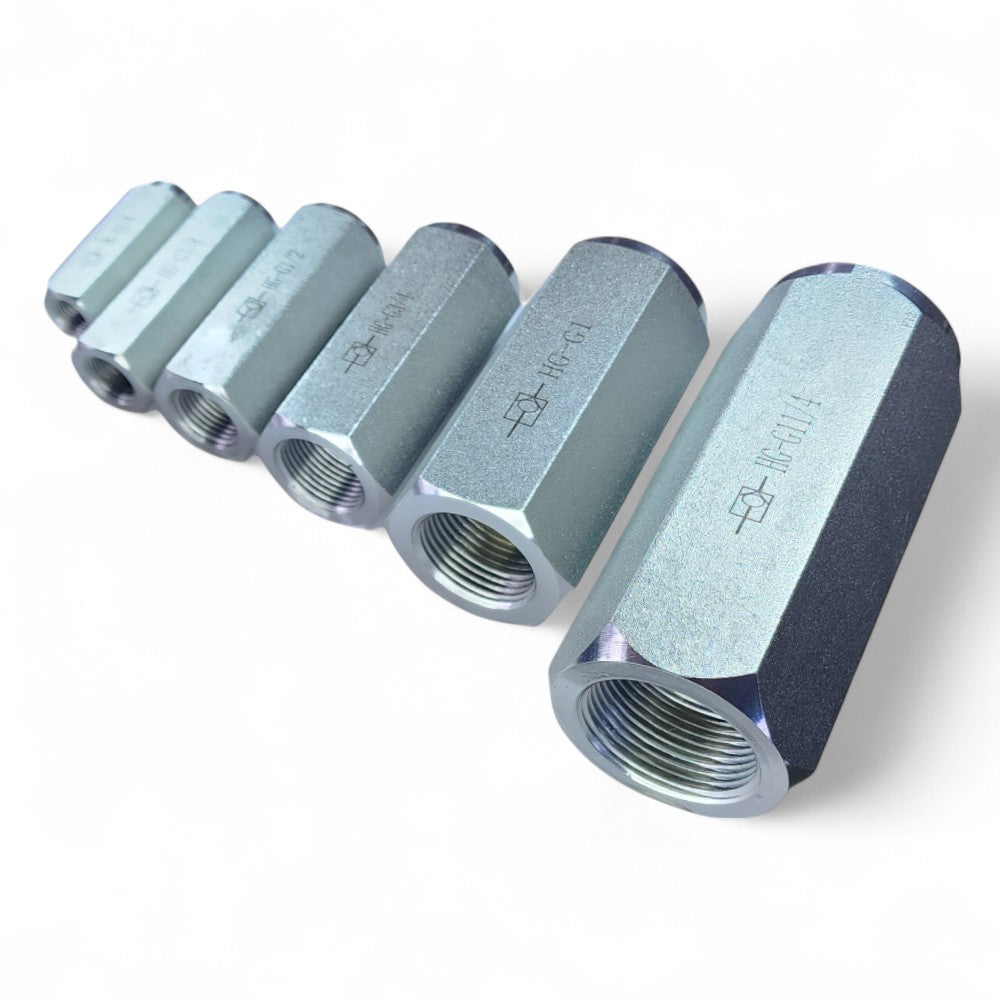

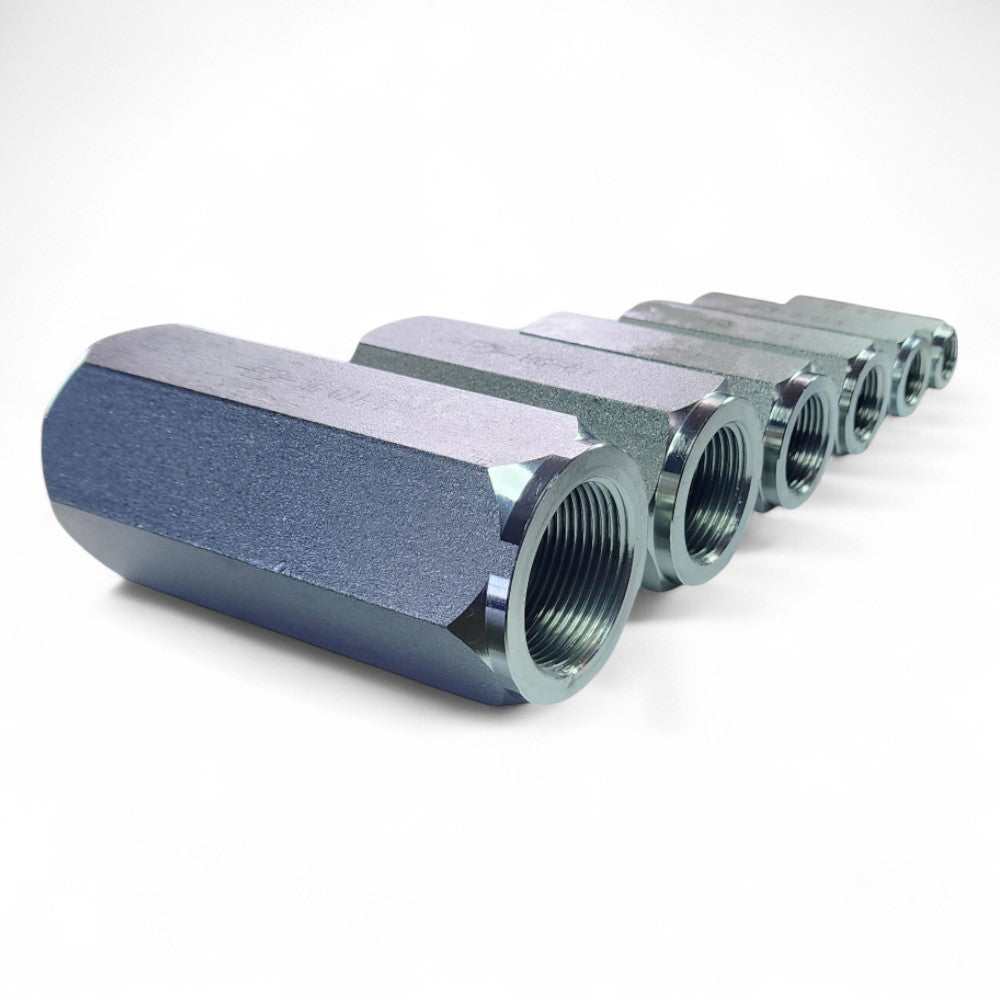

Model Max Flow Rate Max Operating Pressure Port Size
HG-G 1/4" 8 GPM (30 LPM) 7250 PSI (500 BAR) 1/4" NPT
HG-G 3/8" 12 GPM (30 LPM) 7250 PSI (500 BAR) 3/8" NPT
HG-G 1/2" 18.5 GPM (70 LPM) 7250 PSI (500 BAR) 1/2" NPT
HG-G 3/4" 29 GPM (110 LPM) 5800 PSI (400 BAR) 3/4" NPT
HG-G 1" 42 GPM (160 LPM) 5000 PSI (350 BAR) 1" NPT
HG-G 1 1/4" 55.5 GPM (210 LPM) 5000 PSI (350 BAR) 1 1/4" NPT
