Hydraulic O-Rings for ORFS, ORB & SAE Flanges
TR Hydraulics carries Buna-N (NBR / nitrile rubber) hydraulic O-rings for three of the most common hydraulic connection types: O-Ring Face Seal fittings, SAE O-Ring Boss ports and fittings, and SAE Code 61/62 flange connections.
O-Ring Face Seal (ORFS) – FS4000 Series
Our FS4000 Series O-rings are designed for O-Ring Face Seal (ORFS) hydraulic fittings manufactured to SAE J1453 dimensions. The O-ring sits in the face of the male fitting and compresses against the flat mating surface to create a reliable hydraulic seal. Available in sizes 04 through 24.
ORFS connections are commonly used in high-pressure hydraulic systems because of their excellent resistance to leakage, vibration, and pressure fluctuations. Browse our complete selection of ORFS hydraulic fittings.
O-Ring Boss (ORB) – 4000 Series
Our 4000 Series O-rings are designed for SAE O-Ring Boss (ORB) connections manufactured to SAE J1926 dimensions. ORB connections use a straight thread for the mechanical connection while the O-ring provides the hydraulic seal between the fitting and port. Available in sizes 04 through 24.
These O-rings can be used as replacement seals for compatible hydraulic adapters, fittings, plugs, and ports. Browse our O-Ring Boss (ORB) hydraulic fittings.

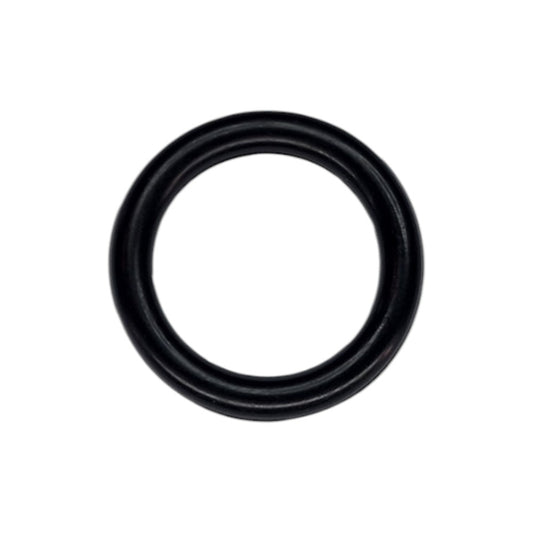

Code 61 & Code 62 Flange O-Rings – 4005 Series
Our 4005 Series O-rings are designed for SAE Code 61 and Code 62 hydraulic flange connections using SAE J518 flange dimensions. The O-ring fits into the flange groove and creates the hydraulic seal between the mating flange surfaces. Available in sizes 08 through 32.
Browse our Code 61 and Code 62 split flange fittings for compatible hydraulic flange components.
Buna-N / NBR Nitrile O-Rings
Our hydraulic O-rings are manufactured from Buna-N, also known as NBR or nitrile rubber. They have a hardness of 90 durometer and a temperature range of -40°C to 121°C (-40°F to 250°F), making them well suited for use with common petroleum-based hydraulic fluids.
O-rings are available in packs of 10 or 100. Order hydraulic O-rings online from TR Hydraulics for fast shipping across Canada, or contact us if you need help identifying the correct ORFS, ORB, or flange O-ring size for your hydraulic connection.
