Description:

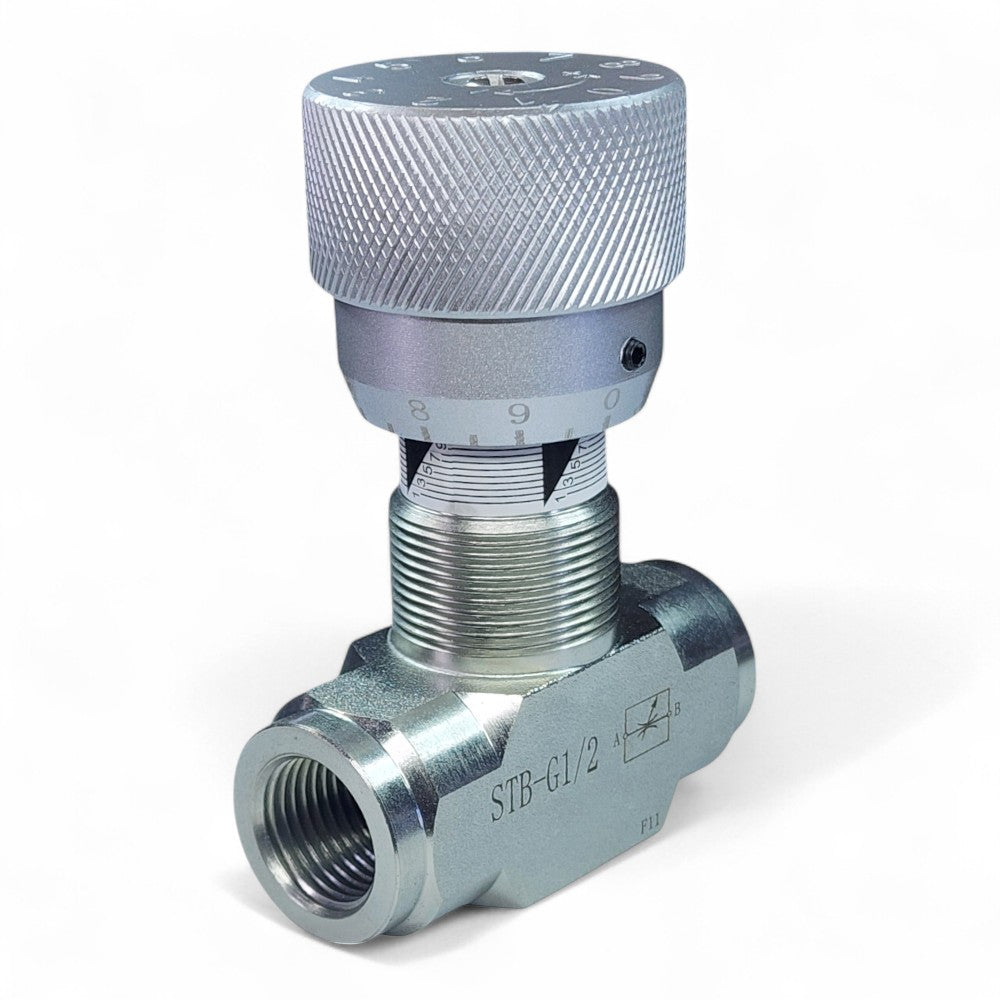

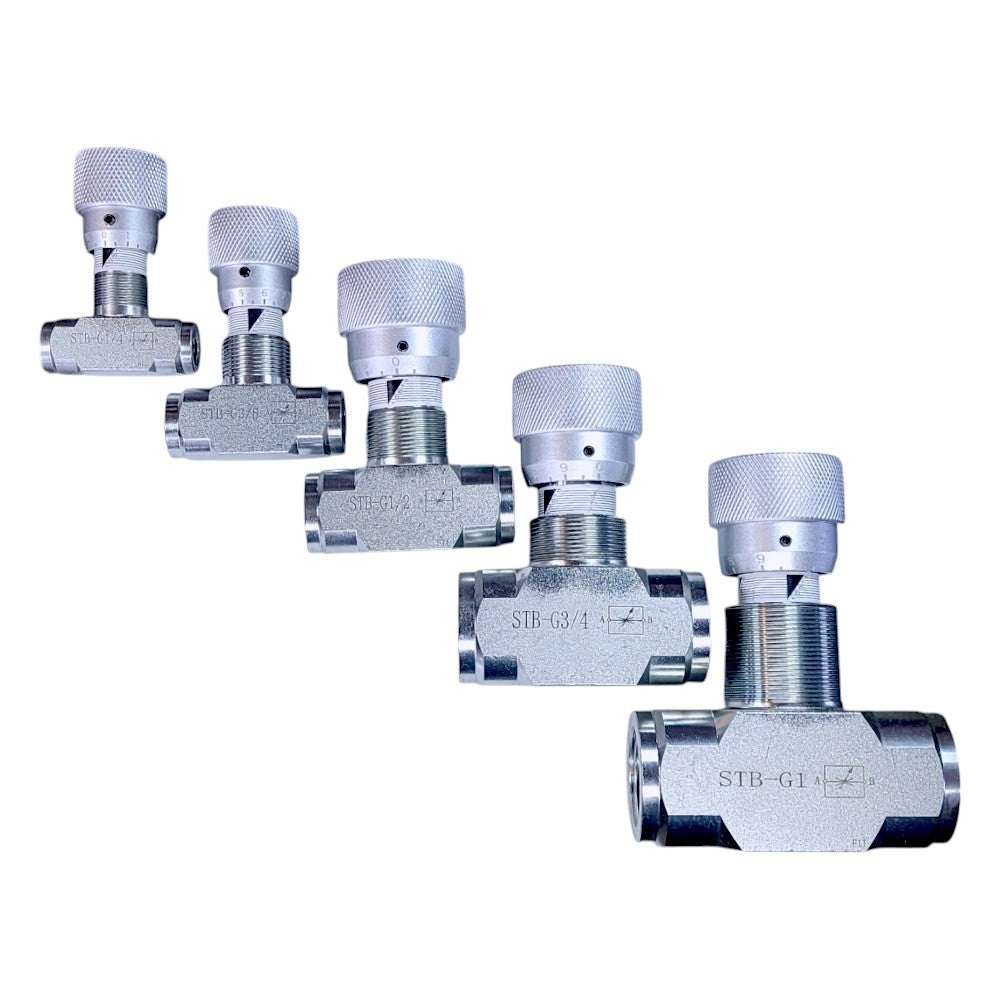

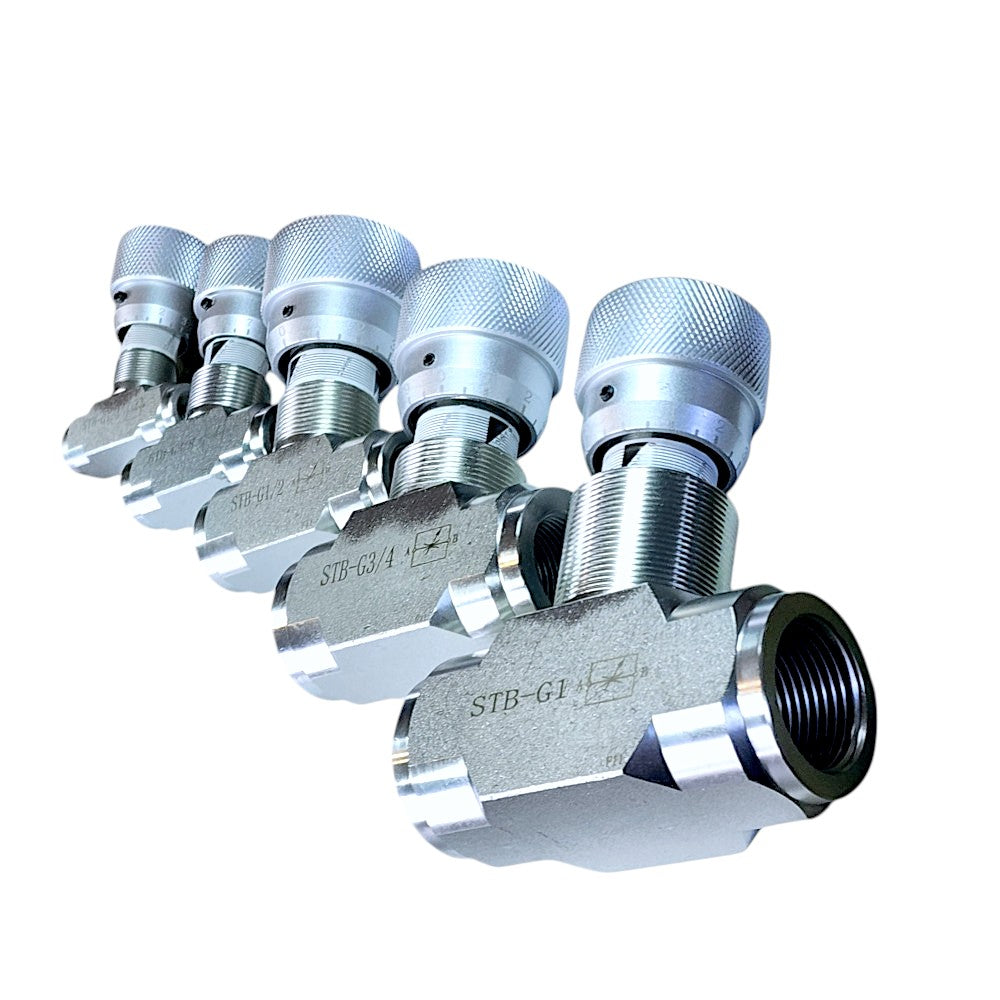

Hydraulic Bi-Directional Flow Restrictor

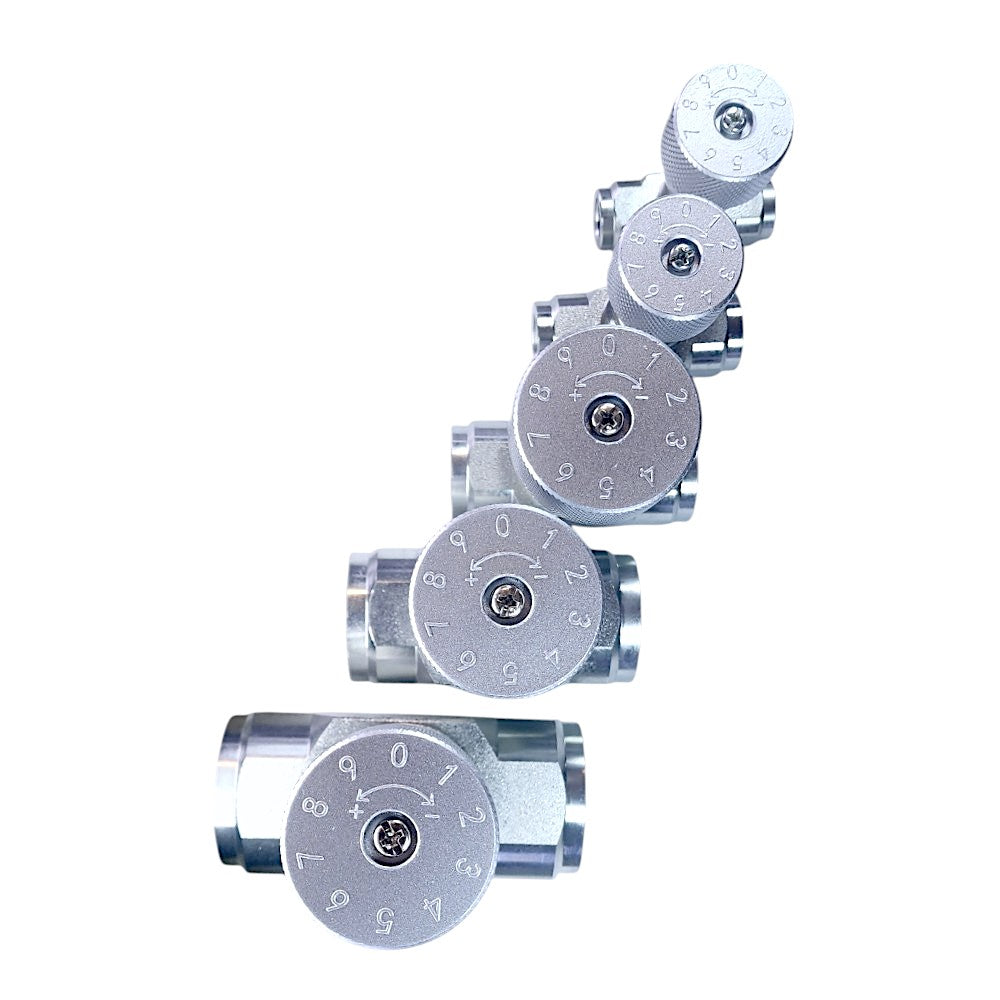

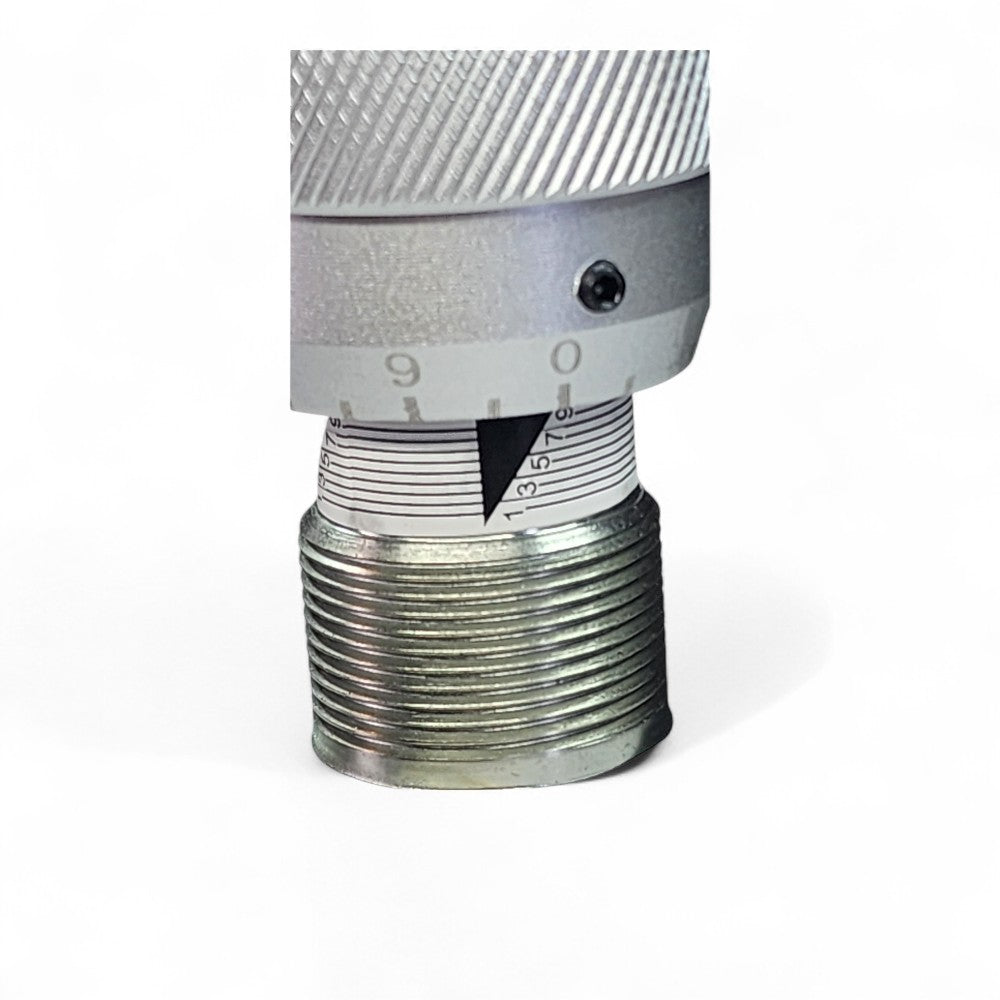

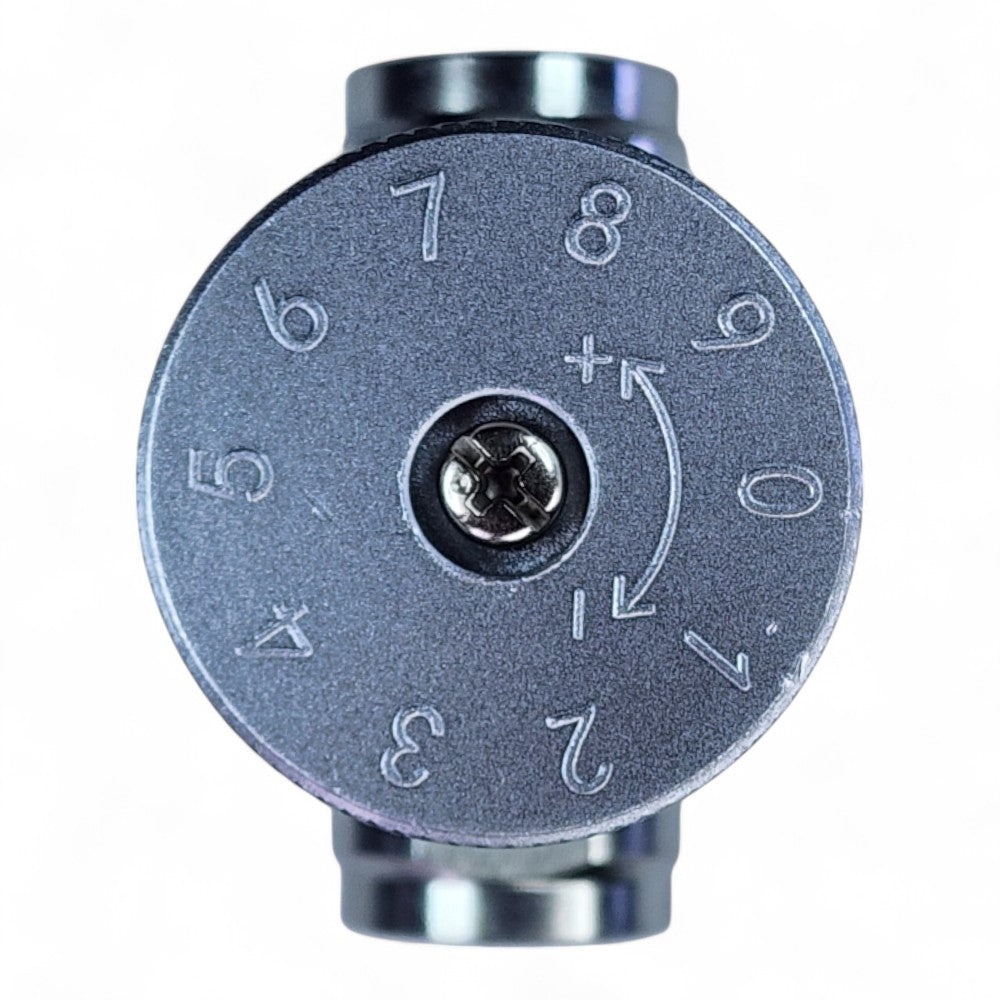

Adjustable Rotary Valve with precision scale and setscrew to lock in place
Tightening the valve reduces flow rate, reduces flow in both directions
Specifications:
Valve & valve body material: Steel
Valve external coating: Trivalent chromium
Seal Material: NBR
Thread A: NPT (Pipe Thread Female)
Thread B: NPT (Pipe Thread Female)
Optimal oil operating temperature range: 40°C to 70°C
Max operating temperature: 90°C
Min/Max ambient temperature: -20°C to +60°C

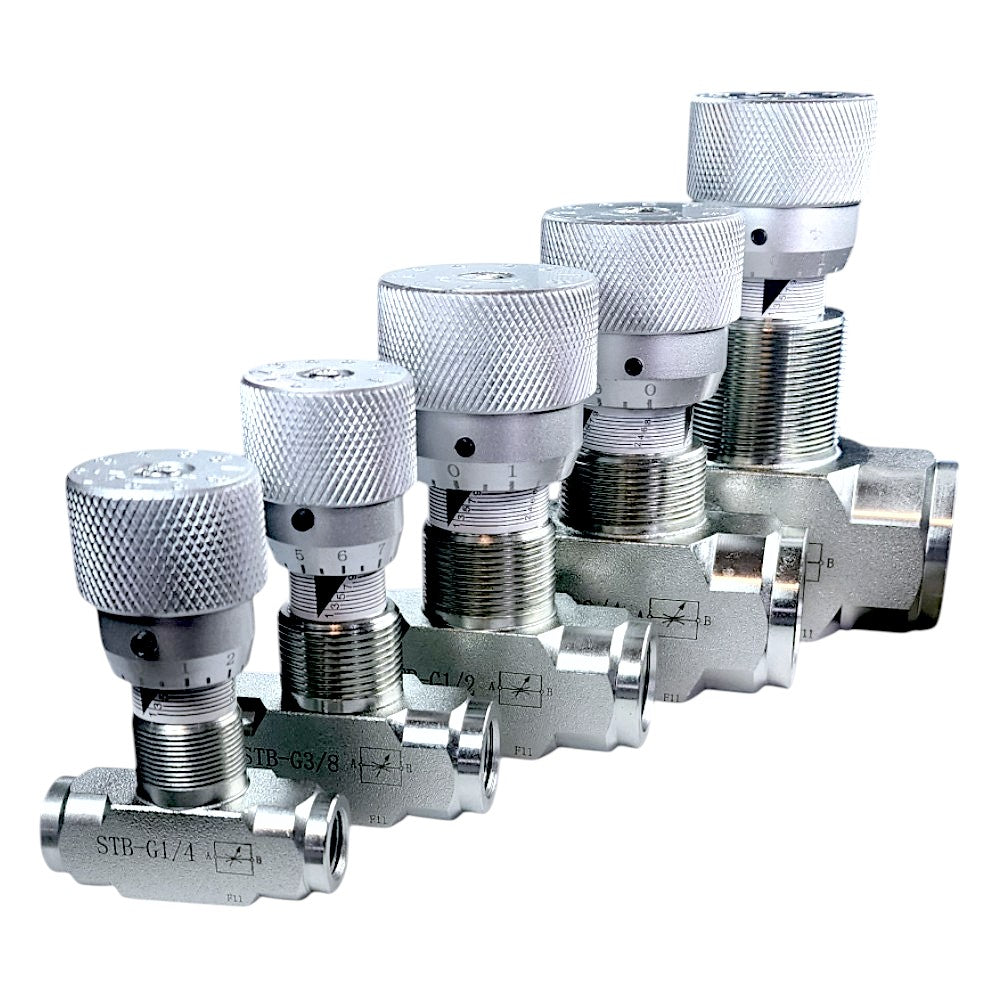

Models:
| Model |
Max Flow Rate |
Max Pressure |
Port Size |

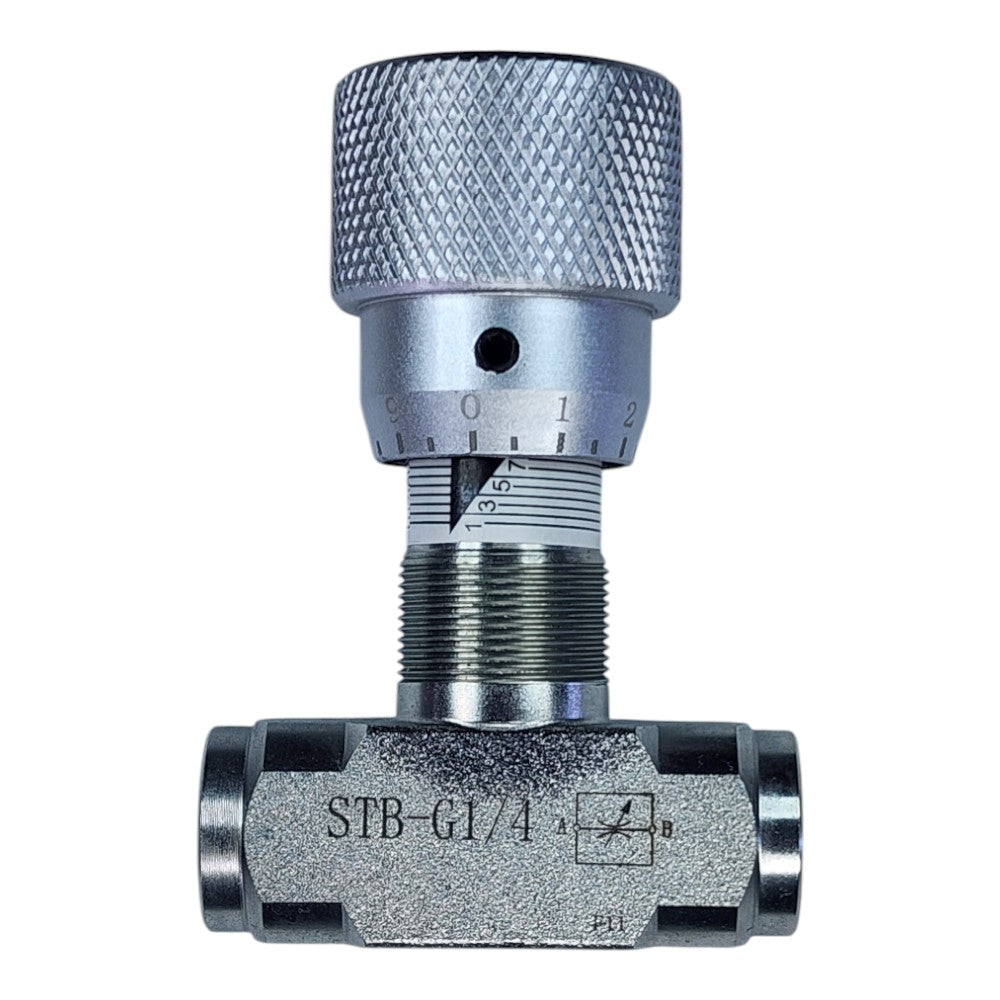

| STB-G04 |
12 LPM (3.17 GPM) |
5800 PSI (400 Bar) |
1/4" NPT |

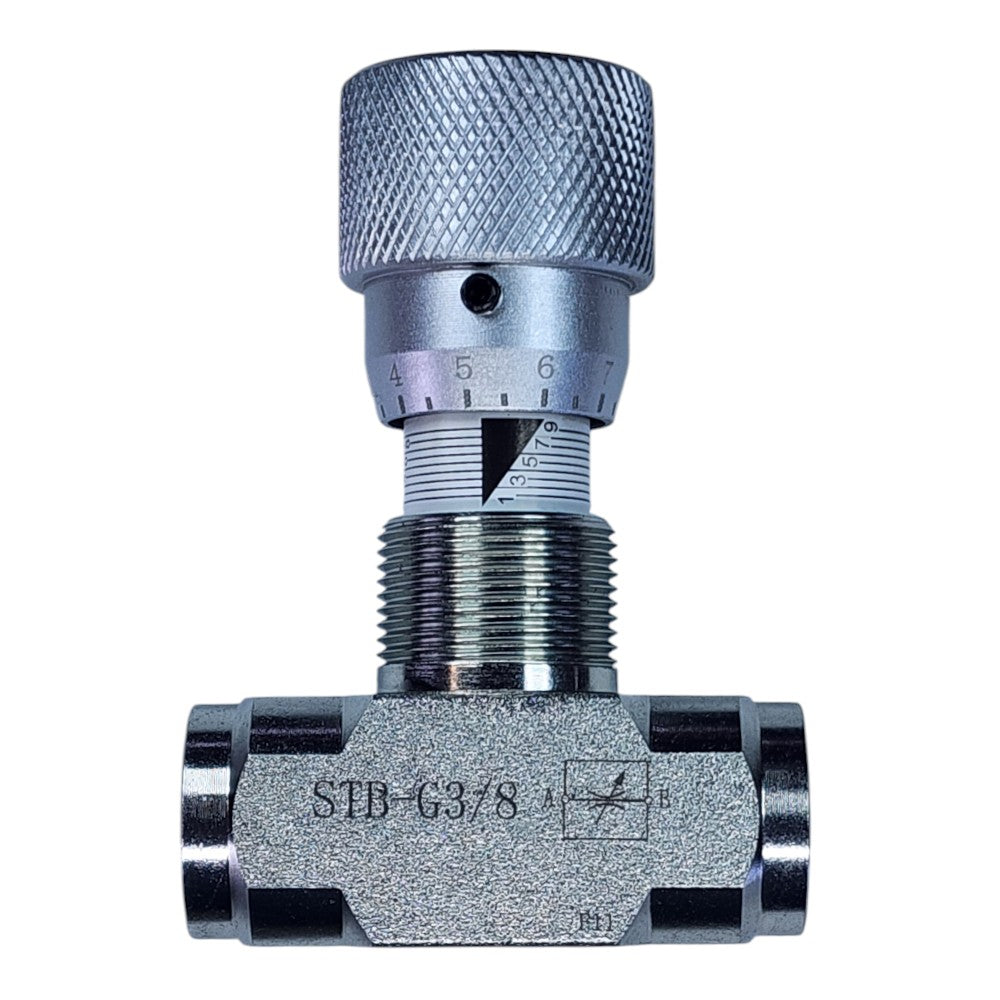

| STB-G06 |
30 LPM (7.92 GPM) |
5800 PSI (400 Bar) |
3/8" NPT |

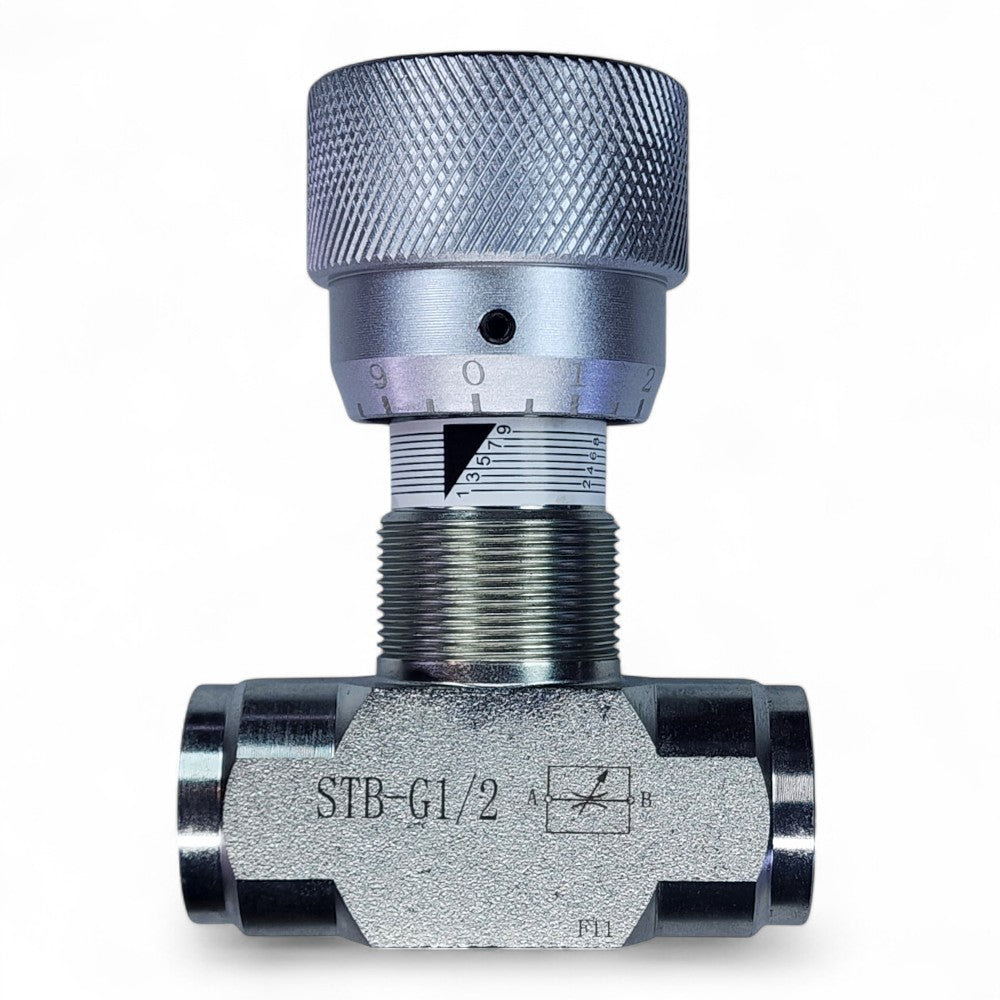

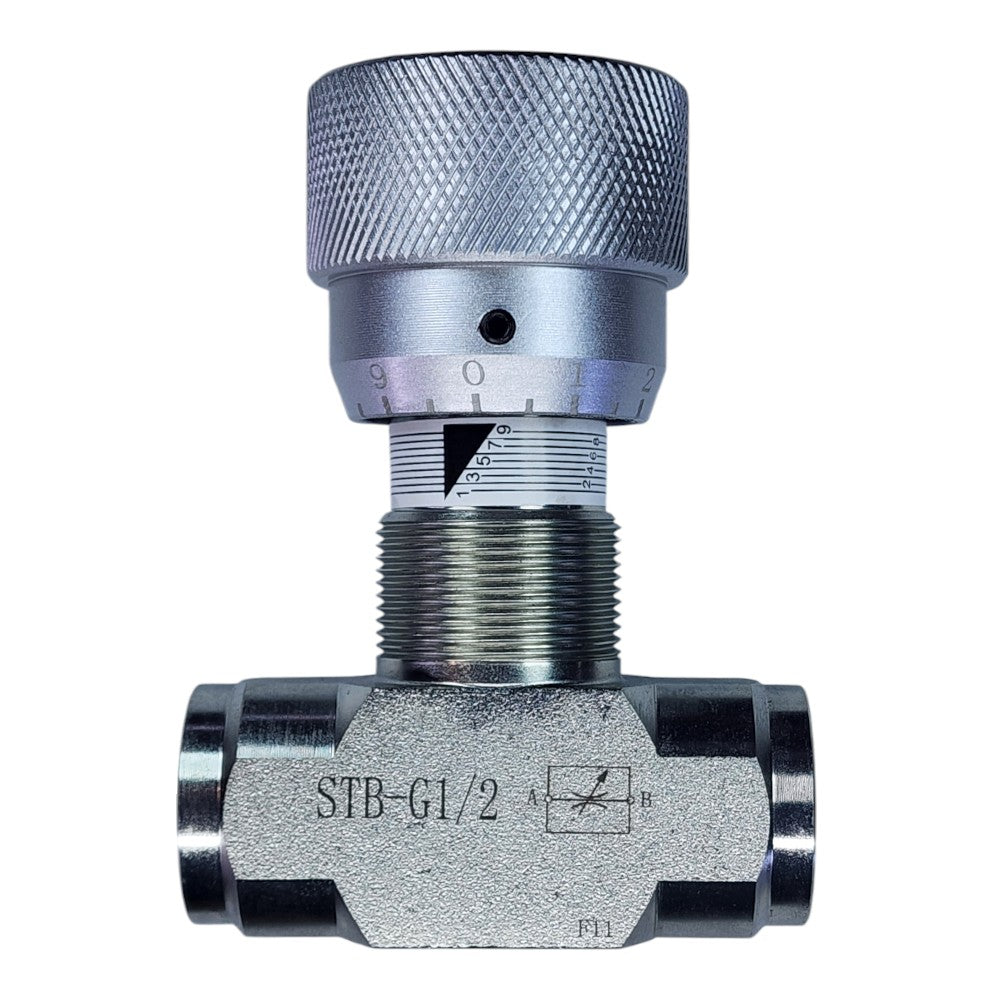

| STB-G08 |
50 LPM (13.20 GPM) |
5800 PSI (400 Bar) |
1/2" NPT |

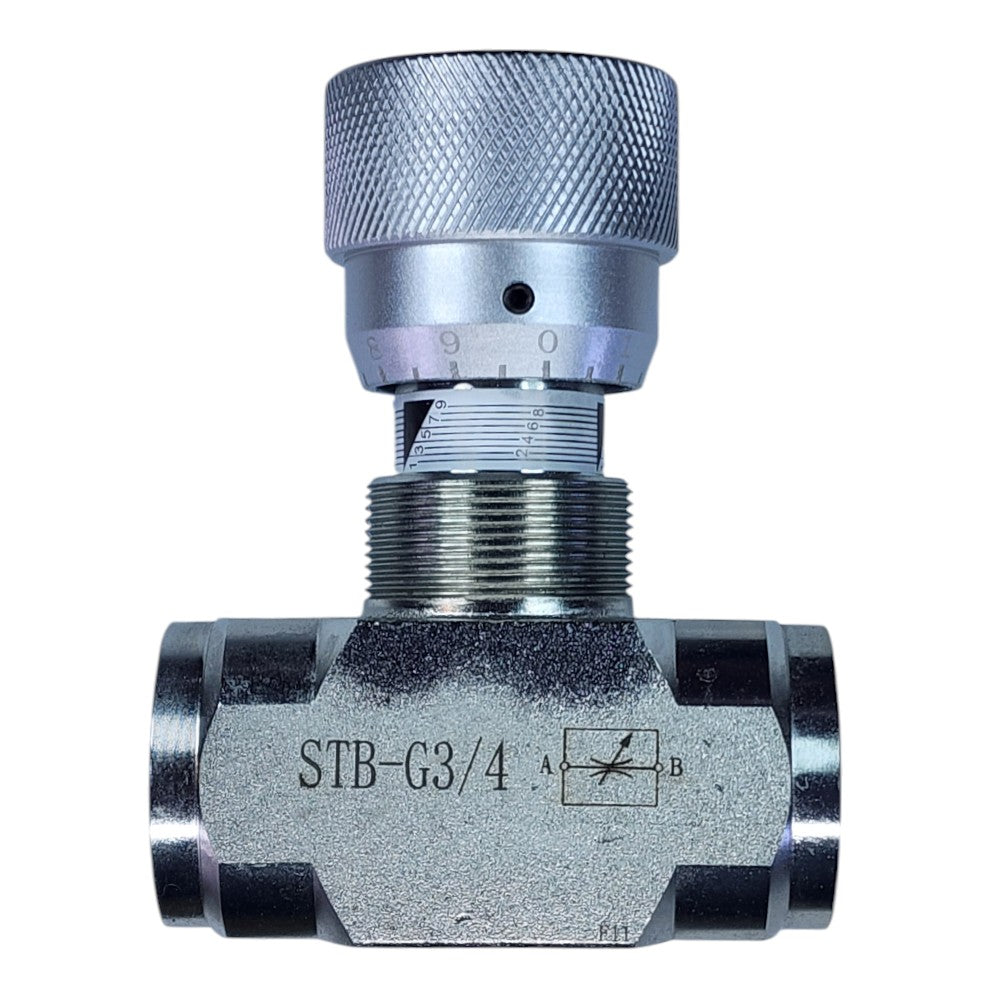

| STB-G12 |
85 LPM (22.45 GPM) |
5800 PSI (400 Bar) |
3/4" NPT |

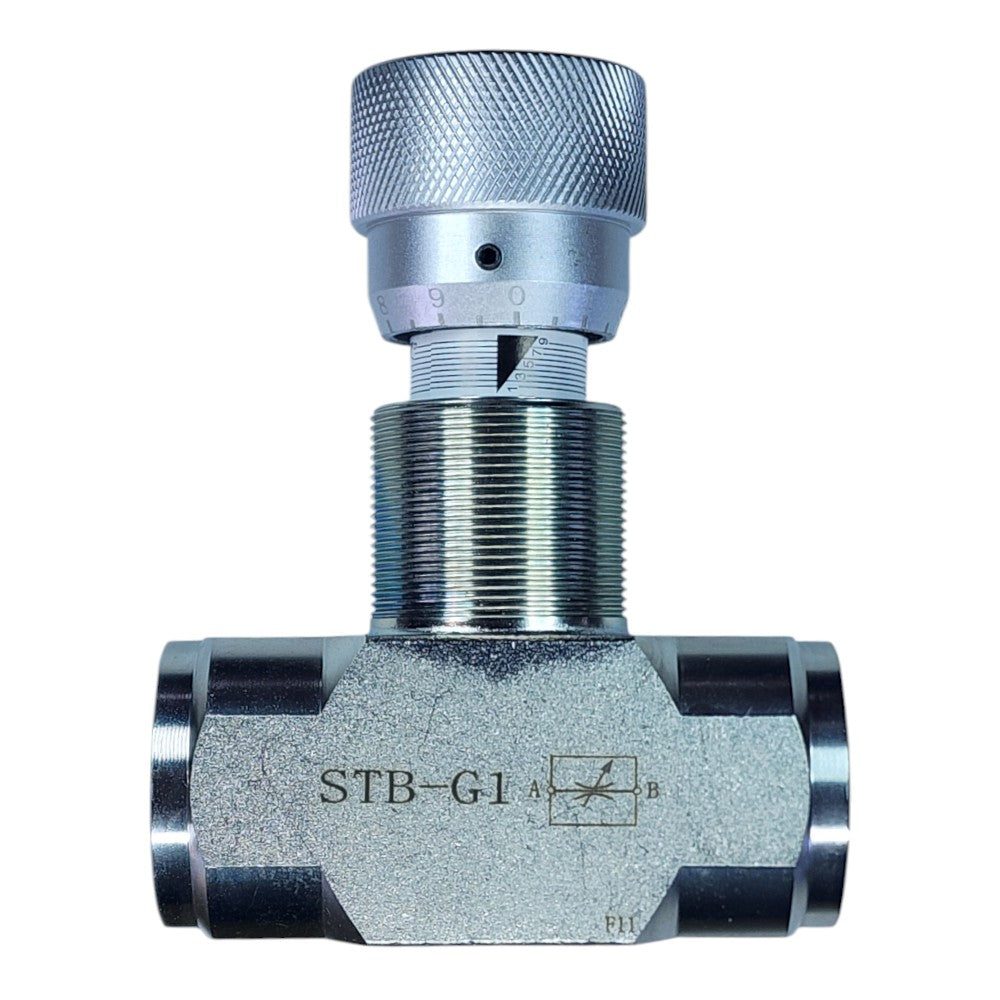

| STB-G16 |
150 LPM (39.62 GPM) |
4650 PSI (320 Bar) |
1" NPT |
